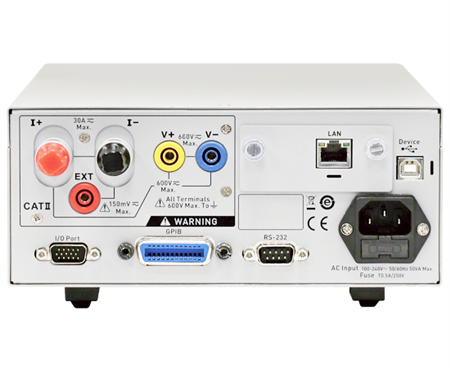

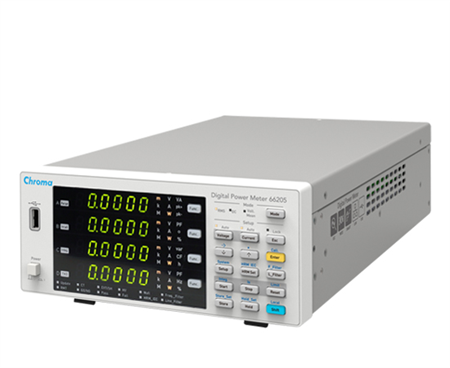

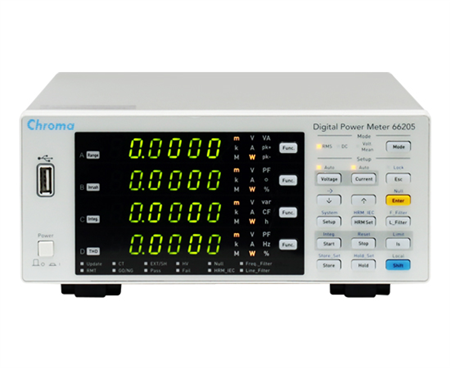

66205 Digital Power Meter

Test & Ölçüm Cihazları → Güç Analizörü & Güç Metre → 66205 Digital Power Meter

Sipariş No : CH-66205

Key Features：

Voltage Ranges: 15/30/60/150/300/600 Vrms 1200Vrms (optional)
Current Ranges : 0.005/0.02/0.05/0.2/0.3/0.5/2/5/20/30 Arms
Frequency Range : DC, 10Hz~10kHz
Embedded high speed DSP, 16 bits Analog/Digital converters withmax samipling rate up to 250kHz
Capable of meeting the IEC 61000-4-7 harmonics measurement requirements
Smart Range function provides seamless power integration measurement underauto range mode
Supports external shunt and CT for higher current applications
5 mA minimum current range & 0.1mW power resolution
Meets ENERGY STAR/EN 50564 /IEC 62301/ErP requirements
User-define criteria provides automatic PASS/FAIL indications
THD and user-specify order distortion measurement
Inrush current and energy measurements
Voltage/ Current harmonics measurements up to 100 orders
USB (Host) interface provides data logging functionality
Support GPIB, USB, RS232, LAN (option) interface

Ürün Kodu	Ürün Açıklaması	Ürün Tipi
CH-66205	Digital Power Meter (1CH)	Model
CH-B662002	Rack Mount Kit	Opsiyon-HW
CH-A662012	1200V HV option kit	Opsiyon-HW
CH-A662013	External CT 50Arms	Opsiyon-HW
CH-A662014	External CT 100Arms	Opsiyon-HW
CH-A662017	Ultra High Precision DCCT 60Apeak	Opsiyon-HW
CH-A662018	Ultra High Precision DCCT 200Apeak	Opsiyon-HW
CH-A662019	DCCT Power Adapter for single channel	Opsiyon-HW
CH-A662021	LAN Remote Interface Board	Opsiyon-HW
CH-A662022	Measurement Test Fixture (250V/10A)	Opsiyon-HW

CHROMA 66205 Datasheet.pdf
