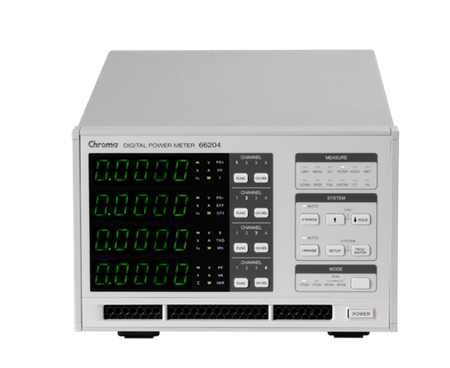

66203 & 66204 Digital Power Meter

Test & Ölçüm Cihazları → Güç Analizörü & Güç Metre → 66203 & 66204 Digital Power Meter

Sipariş No : CH-66200

Key Features：

Voltage Ranges : 15/30/60/150/300/600 Vrms,1200Vrms, 1800Vrms (optional kits)
Current Ranges : 0.005/0.02/0.05/0.2/0.5/2/5/20 Arms
Frequency Range : DC, 10Hz~10kHz
Embedded high speed DSP, 16 bits Analog/Digital converters

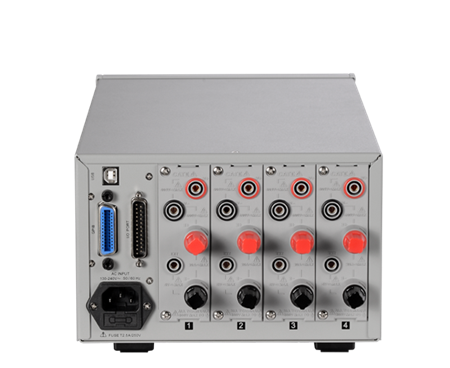

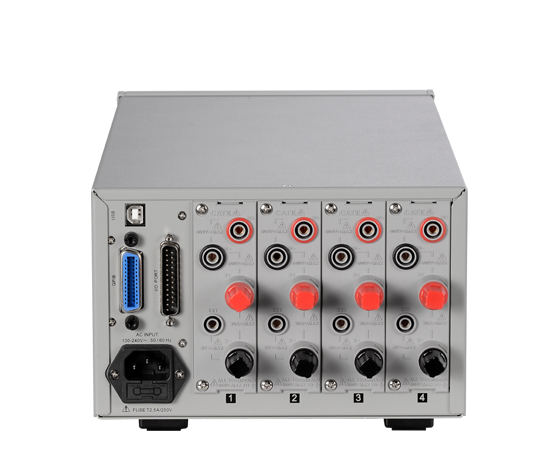

Half rack size, up to 4 input modules
Supports various single and 3 phase wiring configurations (see diagram)
Supports external shunt and CT for higher current applications
5 mA minimum current range & 0.1mW power resolution
Meets ENERGY STAR / EN 50564 / IEC 62301 / ErP / SPEC Power
Includes accumulated energy methods for unstable power measurement
User-define criteria provides automatic PASS/FAIL indications
Dual current shunt design provides high accuracy over a wide current range
THD and user-specify order distortion measurement
Inrush current and energy measurements
Voltage / Current harmonics measurements up to 50 orders
Support ultra high precision DCCT 60A/200A optional kit for high current measurement application

Ürün Kodu	Ürün Açıklaması	Ürün Tipi
CH-66203	Digital Power Meter (3ch)	Model
CH-66204	Digital Power Meter (4ch)	Model
CH-A662010	Rack Mount Kit for 1 unit	Opsiyon-HW
CH-A662012	1200V HV option kit	Opsiyon-HW
CH-A662013	External CT 50Arms for Model 66203/66204	Opsiyon-HW
CH-A662014	External CT 100Arms for Model 66203/66204	Opsiyon-HW
CH-A662015	Voltage and current measurement cables for Model 66204	Opsiyon-HW
CH-A662016	Voltage and current measurement cables for Model 66203	Opsiyon-HW
CH-A662017	Ultra High Precision DCCT 60A	Opsiyon-HW
CH-A662018	Ultra High Precision DCCT 200A	Opsiyon-HW
CH-A662019	DCCT Power Adapter for single channel	Opsiyon-HW
CH-A662020	DCCT Power Adapter for multi-channels	Opsiyon-HW
CH-A662023	1800V HV option kit	Opsiyon-HW

CHROMA 66203_66204 Datasheet.pdf
